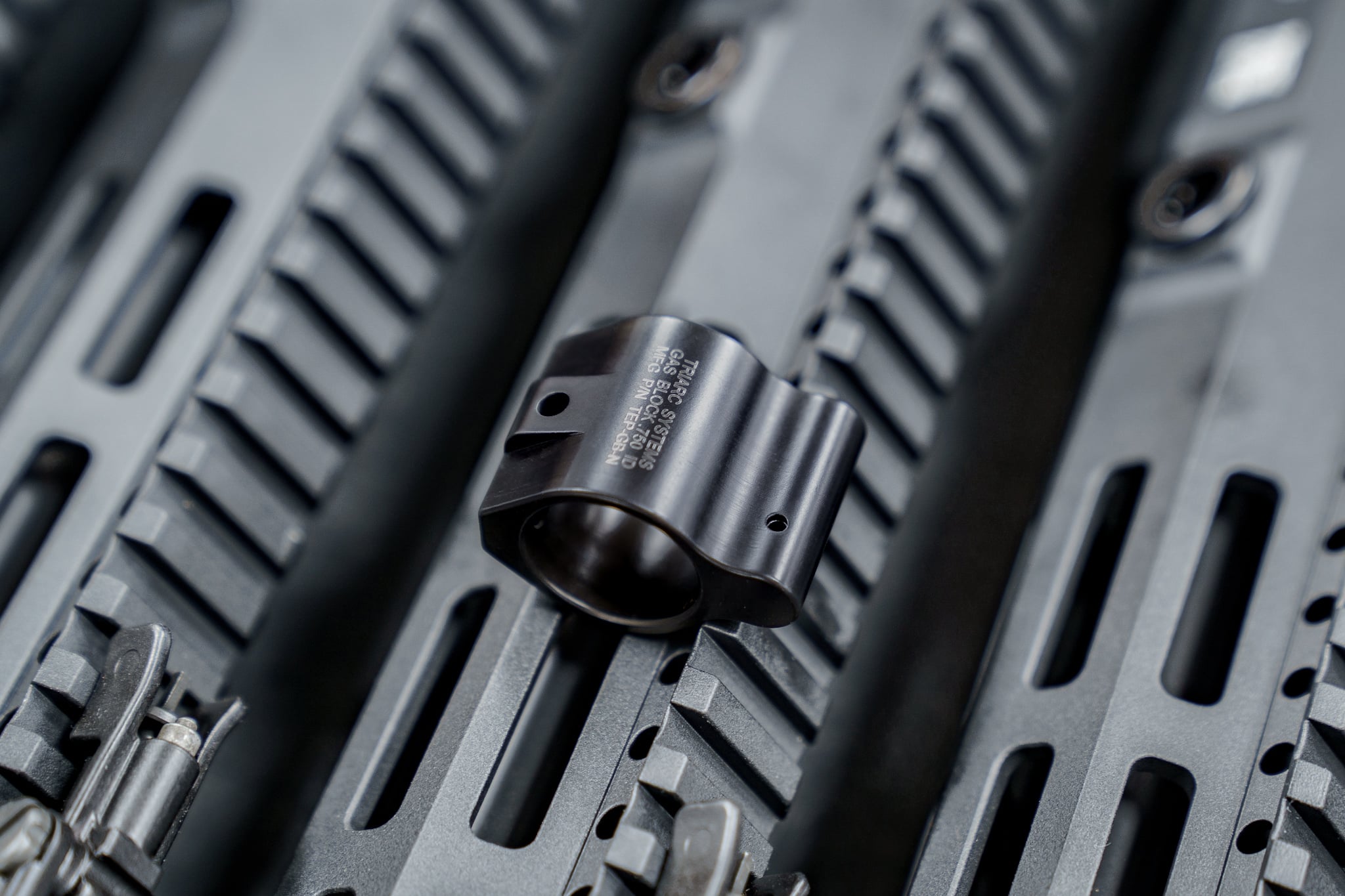

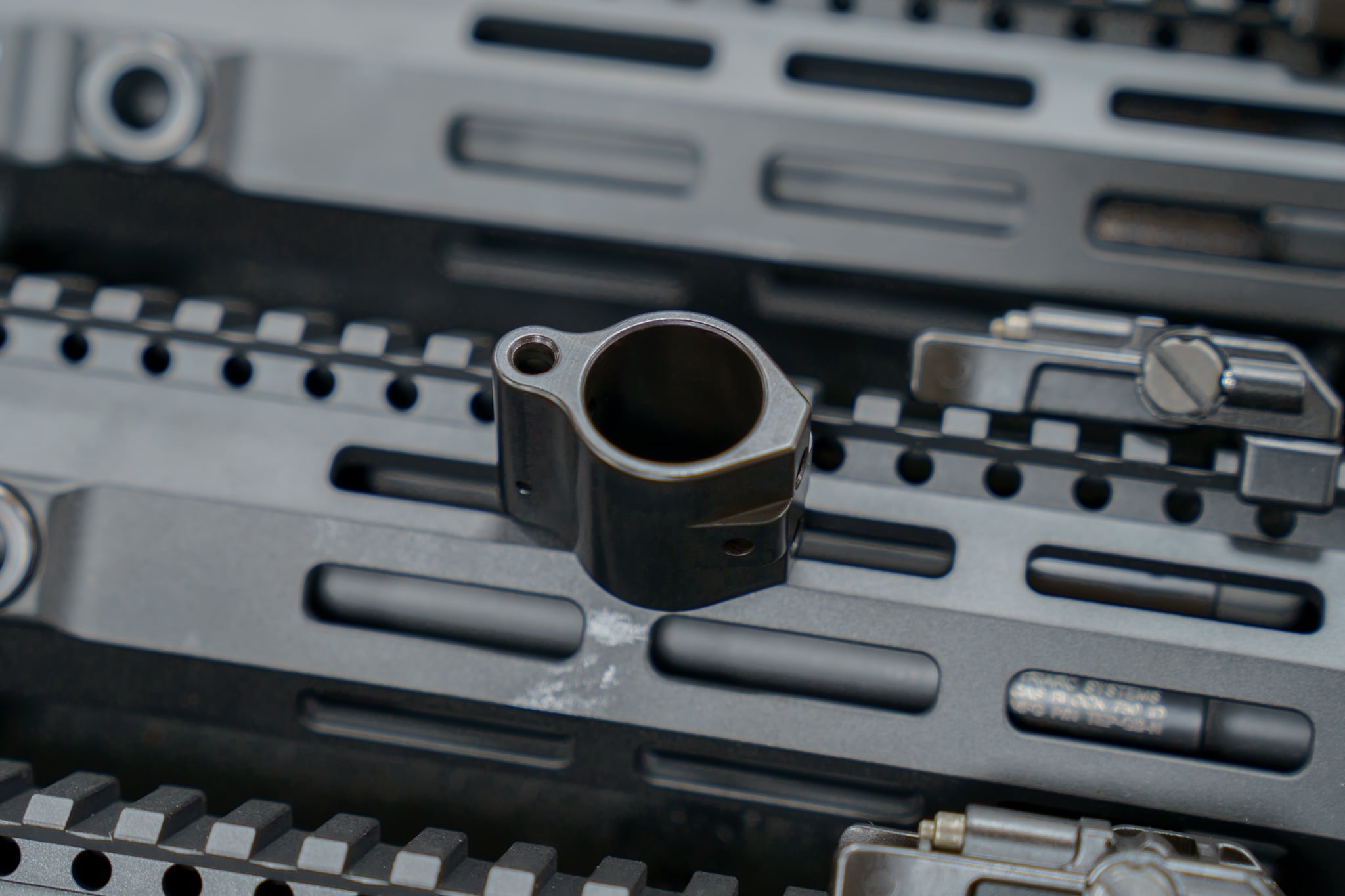

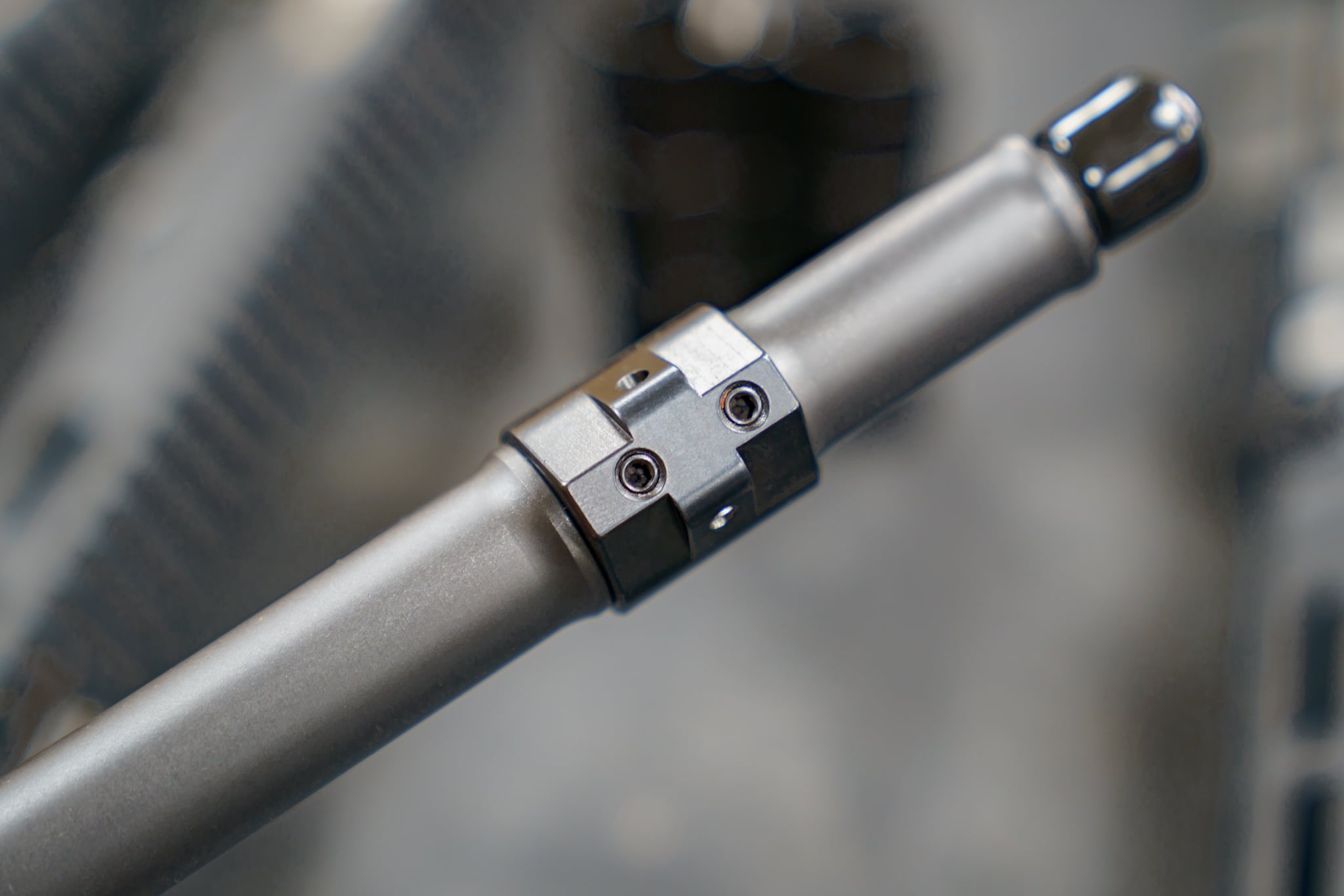

TRIARC Systems Easy Pin Gas Block


SKU TRI-Easy-Pin-Gas-Block Category

 The TRIARC Easy Pin Gas Block’s design aids it to be quickly pinned to your barrel. The pre-cut hole means there is no wasted time by drilling through the gas block. This pre-cut hole is positioned low enough, so only the necessary amount of material from your barrel is removed to ensure a “bombproof” installation. Since there is less material to remove, pinning the barrel is easier to accomplish with a standard hand drill or drill press. We always recommend that a competent gunsmith do the installation. However, because of the gas block’s design, it is much easier for the home builder to accomplish the pinning of the gas block without catastrophic damage to the barrel or gas block.


Download Instructions

* Required Fields

Add to Compare

Share on facebook
Share on twitter

Share on Social


 TRIARC Easy Pin Gas Block features:

Black Nitride Finish

4140 Steel Construction

Low Profile to Fit Inside All Handguards

.750” Internal Diameter

Pre-Cut for Easy Pinning

Gas Efficiency Through Exacting Tolerances

Comes with:

Gas Block

2- Knurled Set Screws

1- 5/64 Stainless Coiled Roll Pin

1- 1/8 Stainless Coiled Roll Pin

Tools Needed:

Drill Press or Hand Drill

1/8” drill bit

Roll pin punch
